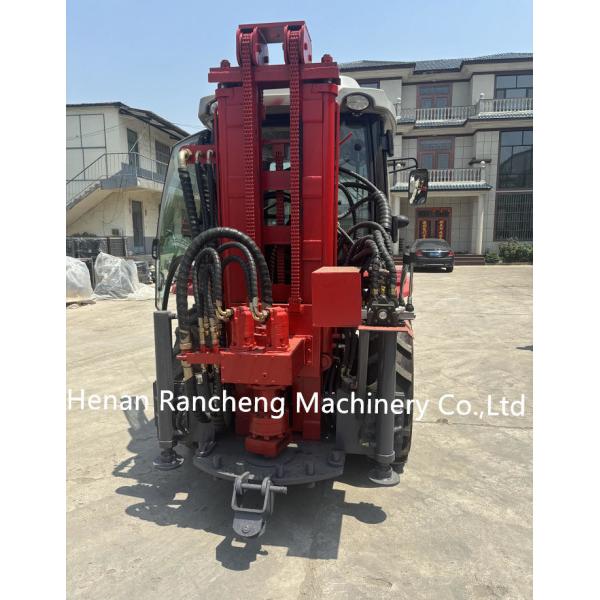

RCF260WT tractor mounted deep water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.
Adopting newest model & advanced hydro technology, low consumption, large rotary torque, convenient hole deflection,
This water well drilling rig machine is mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, drilling diameter is 70-350mm, and drilling depth is 100m to 200m. It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 500mm and depth can be more than 60meter.
Features:
Integration of tractor & rig
The drilling rig is integrated with the tractor, and the tractor is both a transport machine and a rig. When going to the work site, the air compressor can be towed behind the rig. It is only necessary to equip a three-wheeled vehicle to load the drill pipe. This saves the investment of the transportation vehicle and makes it easier to go out. Since the the tractor is small and the design is flexible, the tractor is more suitable for driving and operating in the wild, outside the village, etc.,
Fuel Efficient
The 200 model drilling rig uses the tractor as the carrier and uses hydraulic pressure as the working power of the rig. It can easily realize the drilling of 200 meters with the power of the tractor's own diesel engine 40HP. At the same time, it is not necessary to open the air compressor when lifting the rod, Just opening the hydraulic power is enough to lift the rod. Therefore, the drilling cost is lower and the economic benefit is higher.
Keyboard Operation & Wireless Control
The machine uses mechatronics technology to operate the rig with a push-button keyboard. The operation mode is simpler and more flexible, and the operator can freely select the workstation position according to his or her own will, without being limited by the rig, and can realize the instantaneous jog operation. The improved version of the machine realizes wireless remote control operation, which makes the operation more convenient.
Technical Parameters:
| Technical Parameter | Value |
| Product Category | Borehole Drilling Machine |
| Tractor Horse Power (hp) | 50 |
| Bore Depth | 260m |
| Output Torque (n.m) | 5000 - 5500 |
| Rod Length (mm) | 2000 |
| Travelling Speed (km/h) | 30 |
| Weight | 4500kg |
| Hole Diameter (mm) | 140 - 254 |
| Rod Diameter (mm) | 76 & 89 |
| Rotation Speed (rpm) | 45 - 65 |
Support and Services:
1,24/7 service by chat online and phone.
2,Lifelong and free technical support.
3,Service overseas: if you need, we can dispatch an engineer to your door.
FAQ:
Q:Are you the manufacturer?
A: Yes, we are the factory with more than 10 years of manufacturing experience.
Q:What is the warranty of our machine?
A:Our main machine enjoys a 1 year warranty. And we provide videos for machine install and operation.
Q: How long is your delivery time?
A: About 10-15 work days after receipt of the payment.
Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefits;
Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE and ISO 9001:2000.
